Seakeeper 6

The Seakeeper 6 packs a punch. Designed to eliminate up to 95% of boat roll on boats up to ~24 tons, vessels ~44-53 feet, the Seakeeper 6 provides 6,000 N-M-S of stabilizing power in a compact, efficient package.

MSRP $67,900

INSTALL $22,000 *

*This is the average installation cost for this Seakeeper unit. This does not include taxes, yard time or special modifications. This is only an estimate.

Ideal for Boats

Seakeeper 6 shown to scale here on a SeaRay Sundancer 400.

Stabilization for Small Boats

Small & Lightweight

Seakeeper weighs only a small fraction of the boat's displacement

Eliminate Boat Roll

Eliminate up to 95% of boat roll and the danger, fatigue, anxiety, and seasickness that go with it

Flexible & Efficient

Unlike traditional fins, Seakeeper is completely internal and can be installed virtually anywhere

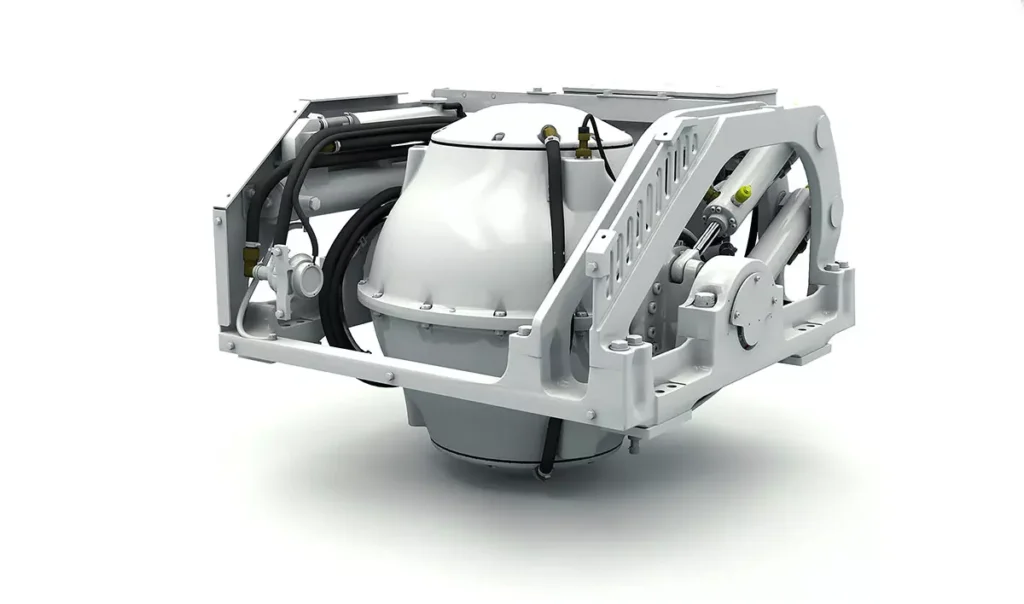

Take a Look Under the Hood

Weight	870 lbs (395 kg)

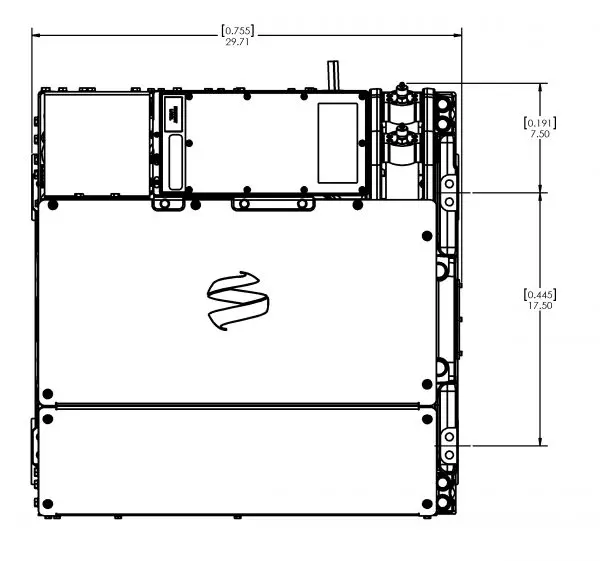

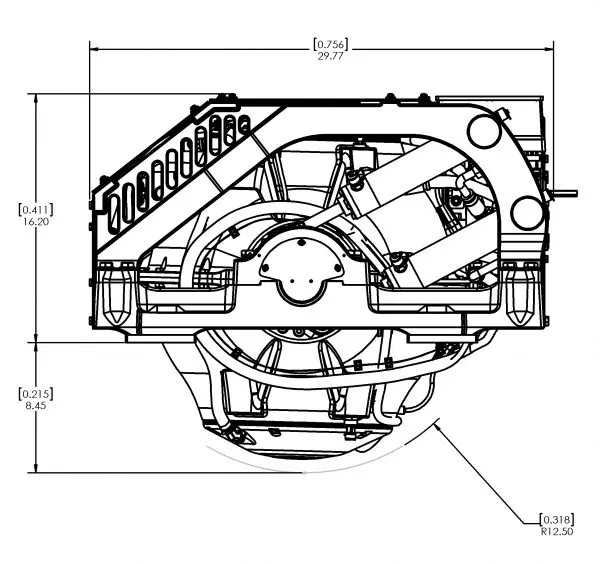

Dimensions	30.09 L x 29.72 W x 24.47 H (inches)
	0.764 L x 0.755 W x 0.621 H (meters)

View full spec sheet

Innovative Cooling System

Our patented cooling system allows the flywheel to spin at an extremely high rate of speed, providing ultimate performance in the smallest and lightest package possible.

Vacuum Sealed

Seakeeper’s vacuum encapsulation enables the flywheel to spin roughly three times faster, cuts flywheel weight by two-thirds and halves power requirements. Moreover, because the critical components (flywheel, bearings, and motor) are sealed in a vacuum, they are isolated from the marine environment.

Active Control

Seakeeper’s active control optimizes gyro torque, providing an unsurpassed level of performance. Unlike a passively controlled gyro, which must be turned off in the roughest conditions and/or at higher speeds, the Seakeeper is effective at all speeds and can be used in all sea conditions.

Intuitive Dash Display

Control your Seakeeper with the push of a button on our new user-friendly dash display. Not only is the display simple to use, but it integrates into your existing dash units for optimal performance.

Max Rated Speed	9,700 RPM
Angular Momentum at Max Rated RPM	6,000 N-M-S
Max Anti-rolling Torque at Max Rated RPM	15,690 N-M
Spool-up Time to Max Rated RPM	42 minutes (9,700 RPM)
Spool-up Time to Stabilization	21 minutes (7,275 RPM)
Power Consumption
Spool-Up Power	2,300 Watts Max
Operating Power	1,100 – 2,300 Watts (Sea State Dependent)
Operating Power Input	220 VAC @ 20 Amps (50/60 Hz, Single Phase) 110 VAC @ 30 Amps (50/60 Hz)
Control Power	125 Watts
Control Power Input	12 VDC @ 15 Amps Max
Seawater Pump Power Input Over Current Protection based on installed pump rating	12 VDC @ 15 Amps Max
Weight	870 lbs (395 kg)
Envelope Dimensions	30.09 L x 29.72 W x 24.47 H (inches) 0.764 L x 0.755 W x 0.621 H (meters)
Noise Output	<72 dBC at 1 meter
Seawater Supply to Heat Exchanger	2.5 GPM (9.5 LPM) minimum 8 GPM (30.3 LPM) maximum
Ambient Air Temperature	32° – 140° F (0° – 60° C)
