To bring stabilization to boats as small as 23 feet, we knew we had to break the mold. The new Seakeeper 1 features a flush mount design for easier installation, runs exclusively on 12V DC power, and can be installed virtually anywhere on board.

MSRP $16,900

INSTALL $14,696 *

*This is the average installation cost for this Seakeeper unit. This does not include taxes, yard time or special modifications. This is only an estimate.

Ideal for Boats

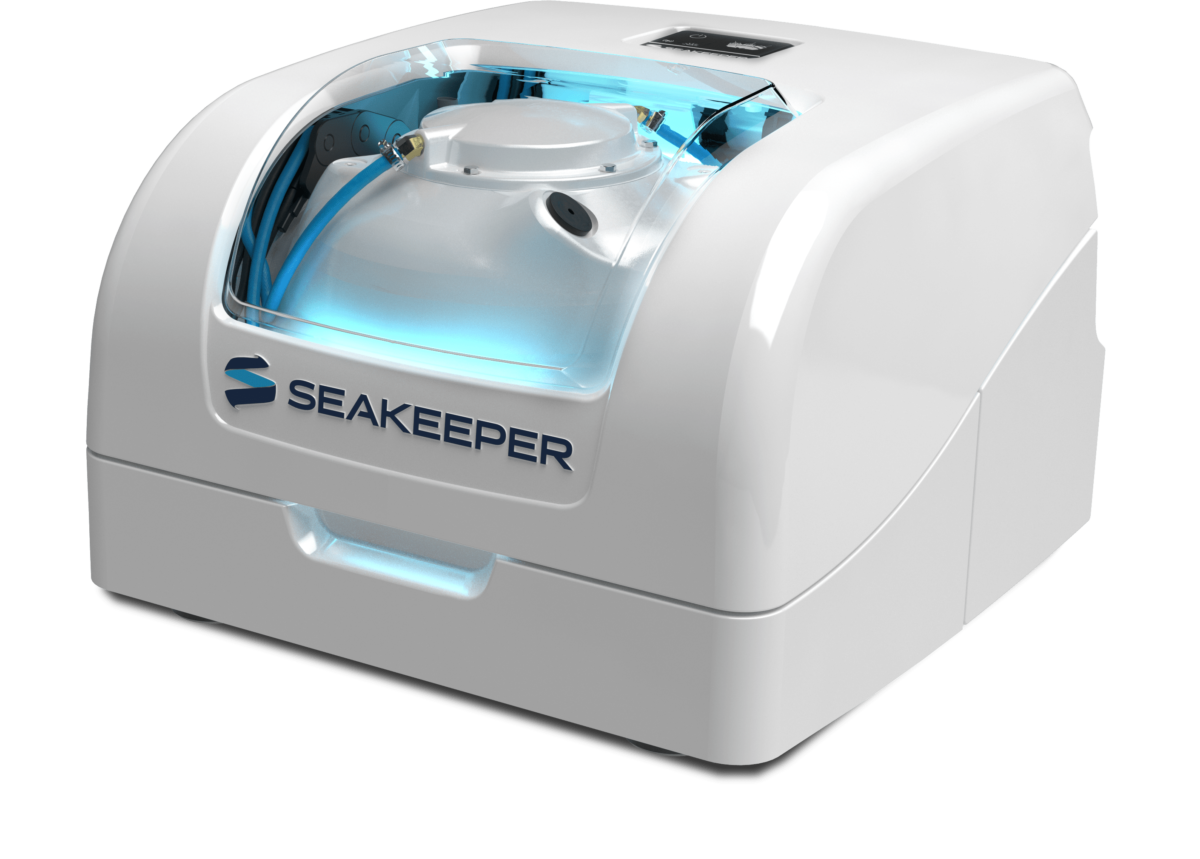

Seakeeper 1
deck mount Enclosure

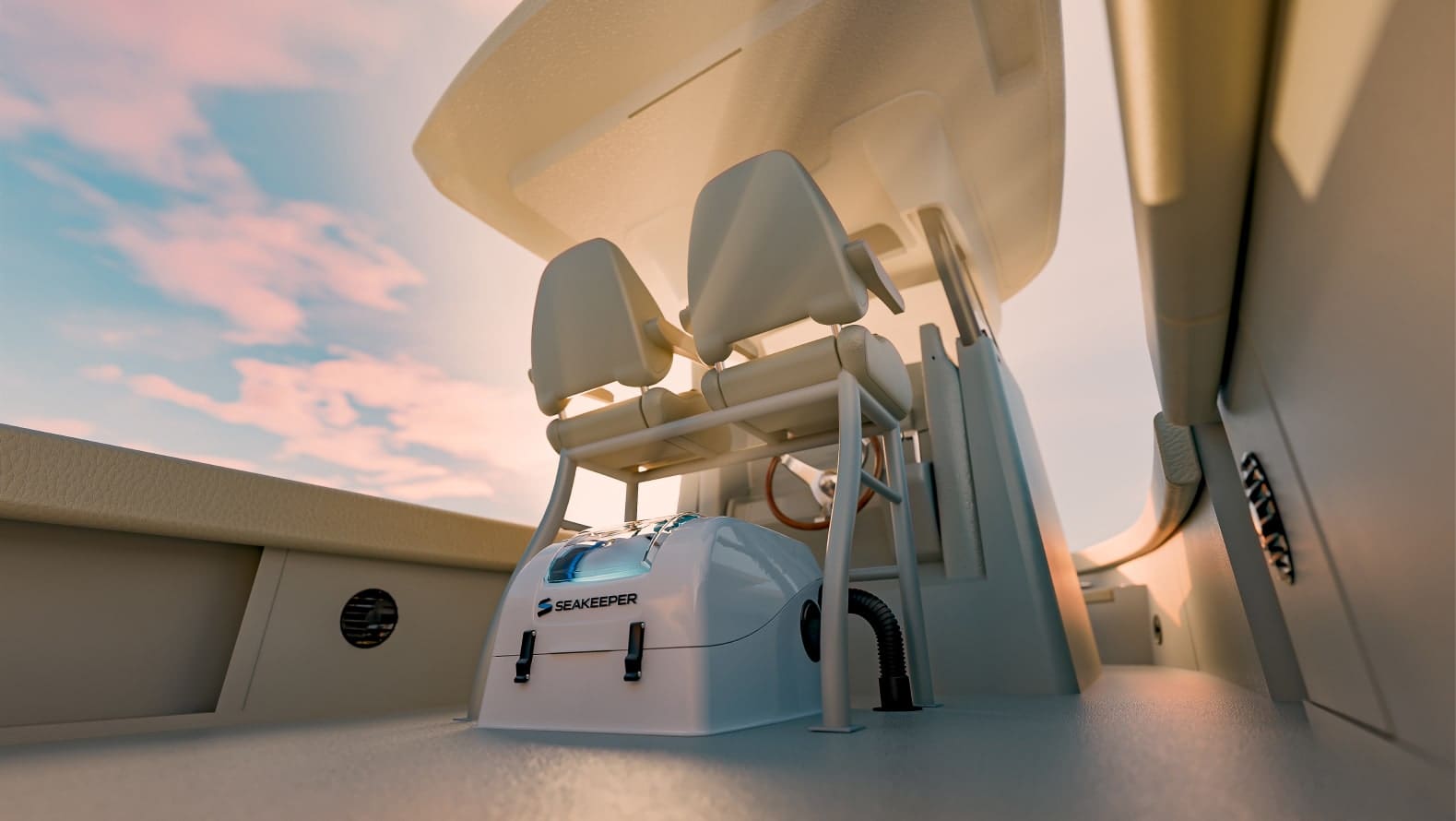

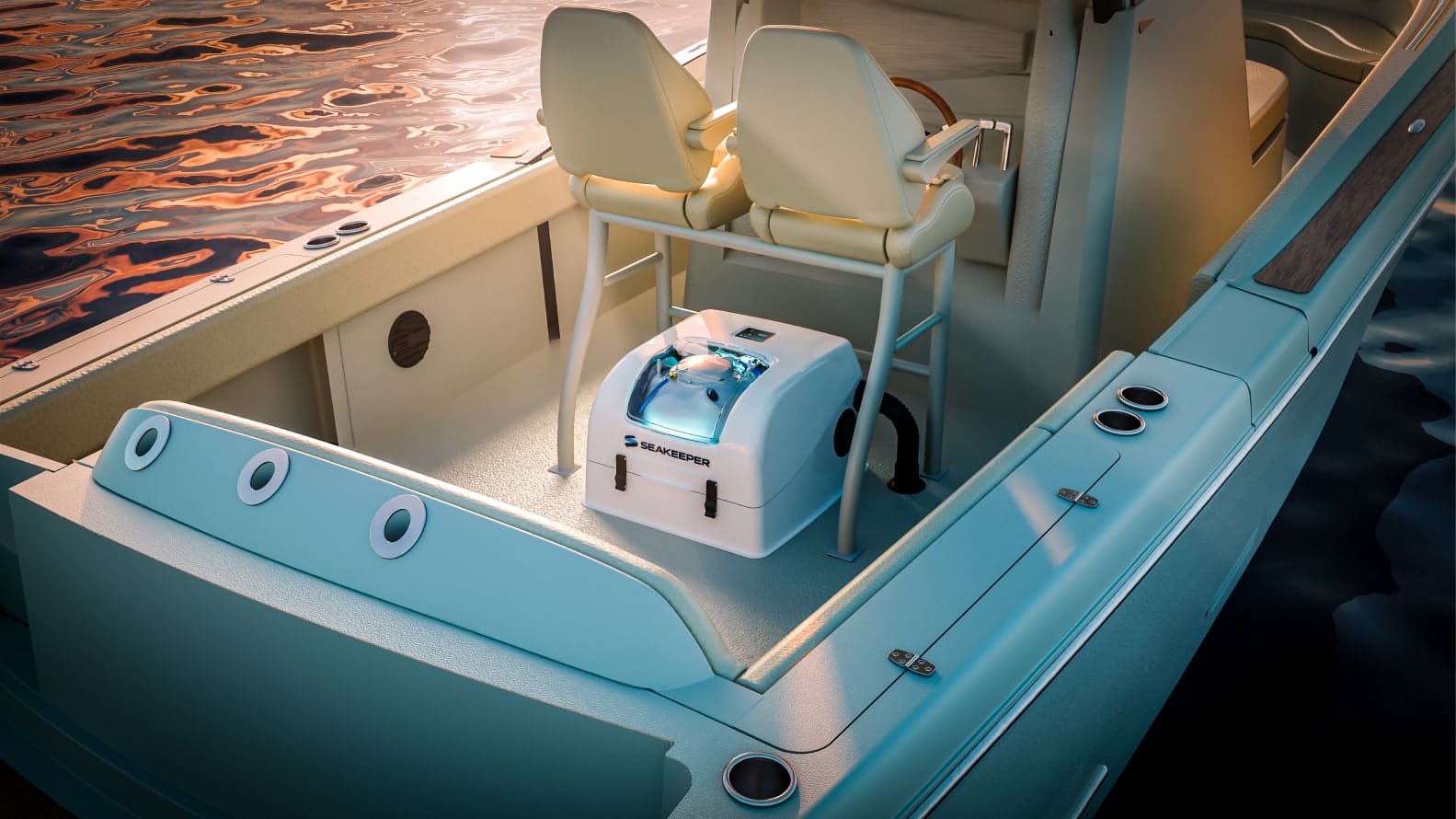

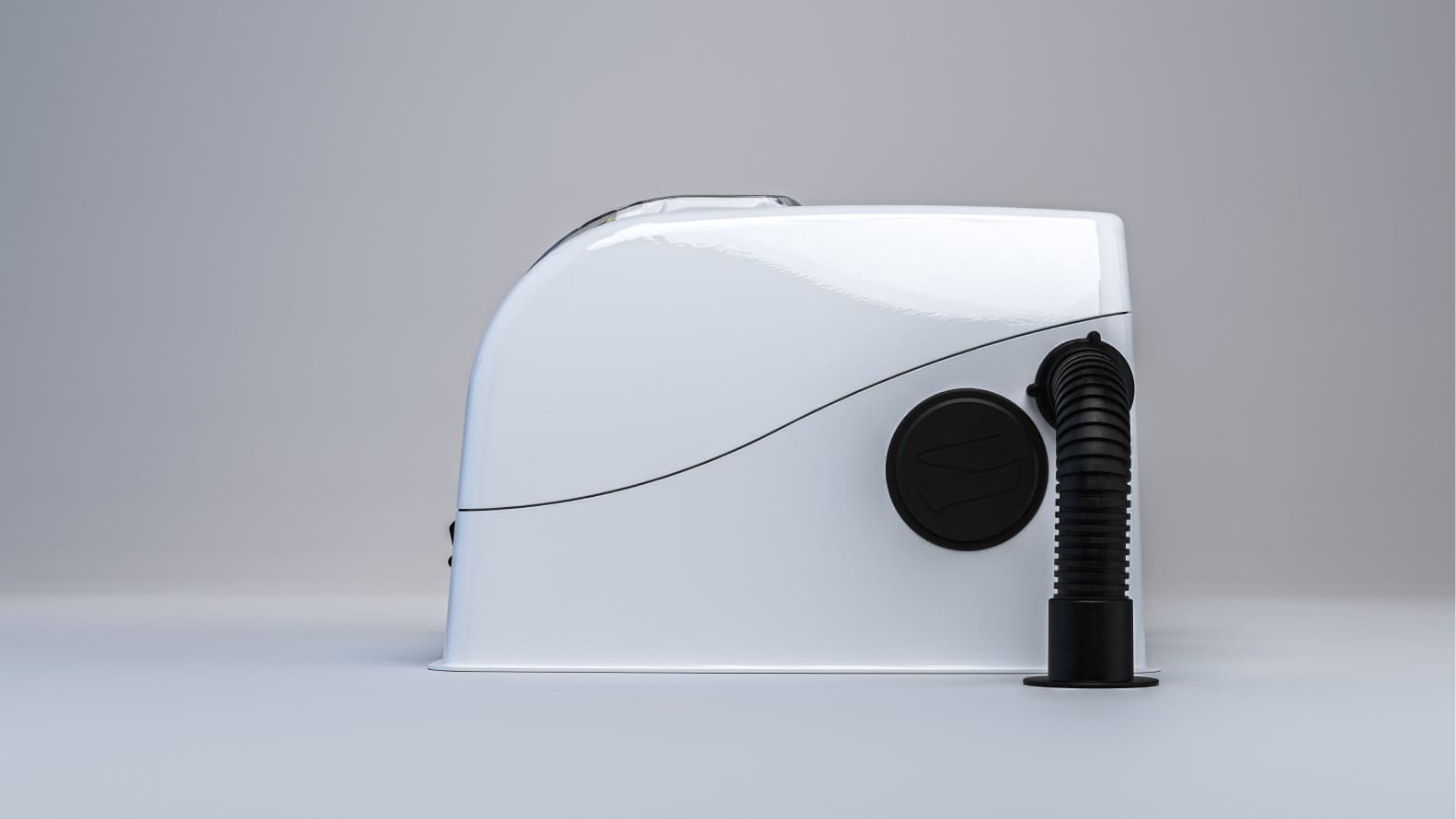

The optional Seakeeper 1 Deck Mount Enclosure enables the Seakeeper 1 to be installed in a non-enclosed space. Without the optional enclosure, the Seakeeper 1 needs to be installed in a covered location (e.g. in an enclosed leaning post, bilge, or console) to protect it from salt, water, and sun. Now, boats with open-framed leaning posts can have Seakeeper stabilization.

$1,800

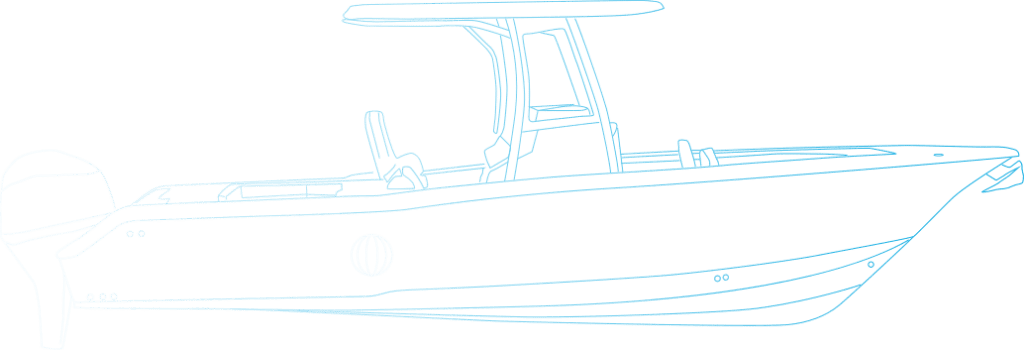

Seakeeper 1 shown to scale here on a Sea Hunt 25.

Stabilization for Small Boats

Small & Lightweight

Seakeeper weighs only a small fraction of the boat’s displacement

Eliminate Boat Roll

Eliminate up to 95% of boat roll and the danger, fatigue, anxiety, and seasickness that go with it

Flexible & Efficient

Unlike traditional fins, Seakeeper is completely internal and can be installed virtually anywhere

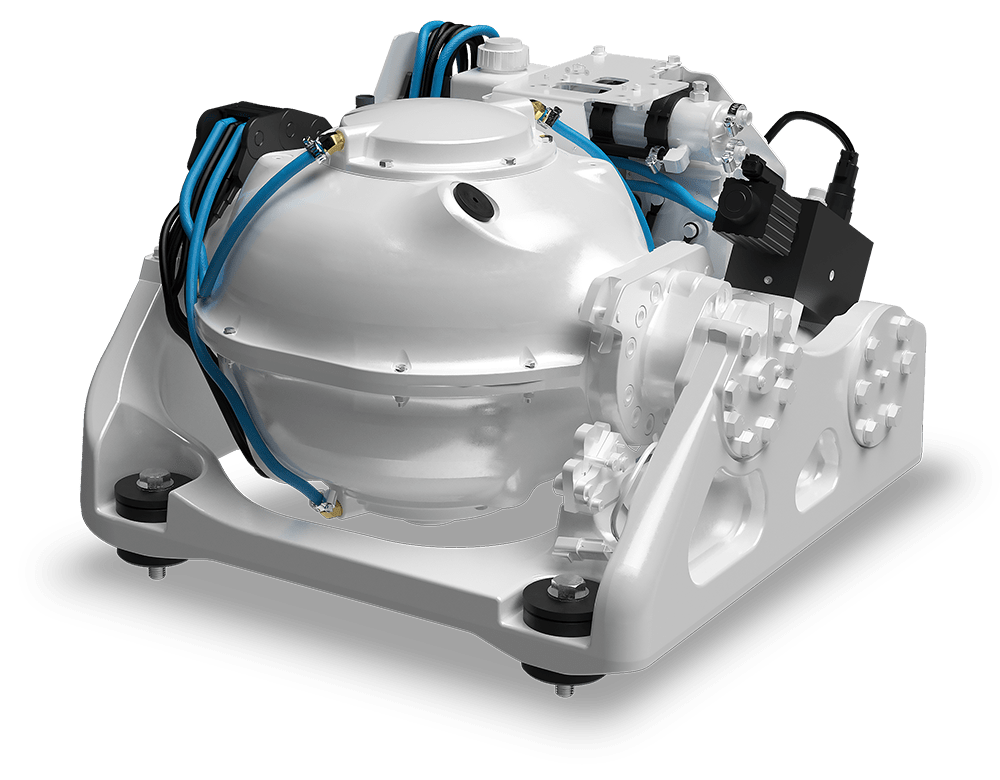

Take a Look Under the Hood

Weight

365 lbs (165 kg)

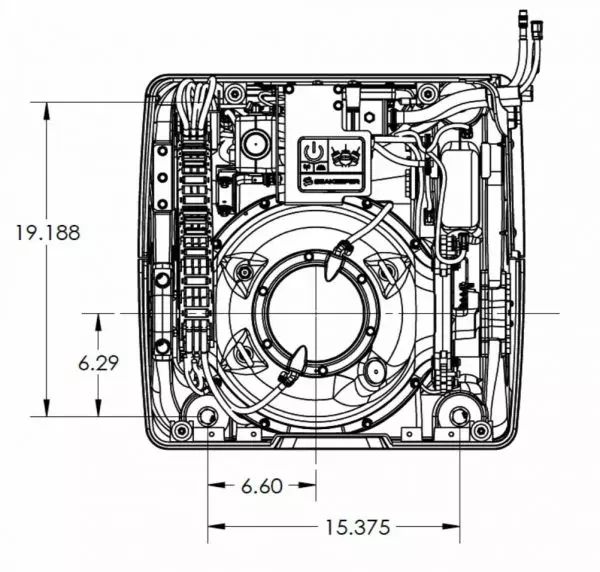

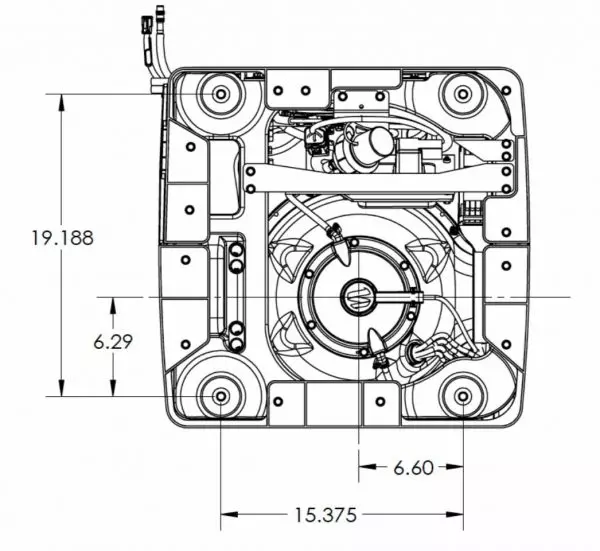

Dimensions

22.9 L x 23.6 W x 15.9 H (inches)

0.582 L x 0.598 W x 0.403 H (meters)

Innovative Cooling System

Our patented cooling system allows the flywheel to spin at an extremely high rate of speed, providing ultimate performance in the smallest and lightest package possible.

Vacuum Sealed

Seakeeper’s vacuum encapsulation enables the flywheel to spin roughly three times faster, cuts flywheel weight by two-thirds and halves power requirements. Moreover, because the critical components (flywheel, bearings, and motor) are sealed in a vacuum, they are isolated from the marine environment.

Active Control

Seakeeper’s active control optimizes gyro torque, providing an unsurpassed level of performance. Unlike a passively controlled gyro, which must be turned off in the roughest conditions and/or at higher speeds, the Seakeeper is effective at all speeds and can be used in all sea conditions.

Intuitive Dash Display

Control your Seakeeper with the push of a button on our new user-friendly dash display. Not only is the display simple to use, but it integrates into your existing dash units for optimal performance.

Max Rated Speed	9,750 RPM
Angular Momentum at Max Rated RPM	1,000 N-M-S
Max Anti-Rolling Torque at Max Rated RPM	2,620 N-M
Spool-up Time to Max Rated RPM	35 minutes (9,750 RPM)
Spool-up Time to Stabilization	18 minutes (7,310 RPM)
Power Consumption
Spool-Up Power	600 Watts Max @ 12 VDC
Spool-Up Power Input	55 Amps
Operating Power	225 - 600 Watts (Sea State Dependent)
DC Power Input	12 VDC @ 20-55 Amps
Control Power	N/A
Control Power Input	N/A
Seawater Pump Power Input Over Current Protection based on installed pump rating	12 VDC @ 15 Amps Max
Weight	365 lbs (166 kg)
Envelope Dimensions	22.9 L x 23.6 W x 15.9 H (Inches) 0.582 L x 0.598 W x 0.403 H (meters)
Noise Output	<64 dBC at 1 meter
Seawater Supply to Heat Exchanger	2 GPM (7.6 LPM) minimum 4 GPM (15.1 LPM) maximum
Ambient Air Temperature	32° - 140° F (0° - 60° C)
